BEL

Discover the BEL Series by Belfab, the ultimate choice for dust collection. Ranging from 5 HP to 20 HP, it offers high efficiency and a full range of features. Designed in compliance with NFPA. Optimized for maximum performance, it includes dust disposal options that are engineered to minimize downtime. Ideal for wood dust, the BEL Series limits airborne particles, ensuring safety and a clean workspace. Trust Belfab for superior dust collection and a healthier work environment!

BEL series features

Configurable Design

The BEL Series offers four filter sizes with flexible blower configurations (5-20 HP) and two height options (standard and XL) to fit various environments.

Various Dust Disposal Options

Choose from disposable bags, durable steel drums for heavy-duty applications, or easy-to-maneuver tilt trucks for quick and efficient dust disposal in larger facilities.

Quiet & Highly Efficient

Our quiet Hummer blower, available on to 20 HP models. Our units are built with 14-gauge steel for durability and quiet operation. High-efficiency bean bag filters capture 99.99% of particles at 3.8 microns.

Why Choose the BEL?

The BEL Series limits airborne particles, reduces downtime, and enhances overall safety—making it the go-to choice for dust collection in any woodworking or industrial setting. Choose Belfab for unmatched performance, efficiency, and ahealthier workspace.

Model 50XL

Filtration surface (sqft)	214
Filter type (Dimensions) (in)	Beane Seamless Tube (Ø8 x 66)
Cleaning	Self Cleaning or Automatic Shaker (Optional)
Dust disposal options	Disposable Bags, Drums, Tilt Trucks, or 360 Gal. Dump Bin
Dimensions* (W x D x H) (in)	62 x 49 x 130
Module Weight (lbs)	795

Model 75XL

Filtration surface (sqft)	214
Filter type (Dimensions) (in)	Beane Seamless Tube (Ø8 x 66)
Cleaning	Self Cleaning or Automatic Shaker (Optional)
Dust disposal options	Disposable Bags, Drums, Tilt Trucks, or 360 Gal. Dump Bin
Dimensions* (W x D x H) (in)	64 x 49 x 130
Module Weight (lbs)	795

Model 100XL

Filtration surface (sqft)	321
Filter type (Dimensions) (in)	Beane Seamless Tube (Ø8 x 66)
Cleaning	Self Cleaning or Automatic Shaker (Optional)
Dust disposal options	Disposable Bags, Drums, Tilt Trucks, or 360 Gal. Dump Bin
Dimensions* (W x D x H) (in)	94 x 49 x 130
Module Weight (lbs)	1290

Model 150XL

Filtration surface (sqft)	487
Filter type (Dimensions) (in)	Beane Seamless Tube (Ø8 x 66)
Cleaning	Self Cleaning or Automatic Shaker (Optional)
Dust disposal options	Disposable Bags, Drums, Tilt Trucks, or 360 Gal. Dump Bin
Dimensions* (W x D x H) (in)	119 x 49 x 130
Module Weight (lbs)	1462

Model 200XL

Filtration surface (sqft)	641
Filter type (Dimensions) (in)	Beane Seamless Tube (Ø8 x 66)
Cleaning	Self Cleaning or Automatic Shaker (Optional)
Dust disposal options	Disposable Bags, Drums, Tilt Trucks, or 360 Gal. Dump Bin
Dimensions* (W x D x H) (in)	142 x 49 x 130
Module Weight (lbs)	1530

Model 50

Filtration surface (sqft)	150
Filter type (Dimensions) (in)	Beane Seamless Tube (Ø8 x 45 1/2)
Cleaning	Self Cleaning or Automatic Shaker (Optional)
Dust disposal options	Disposable Bags, Drums, Tilt Trucks, or 360 Gal. Dump Bin
Dimensions* (W x D x H) (in)	61 x 49 x 109
Module Weight (lbs)	795

Model 75

Filtration surface (sqft)	150
Filter type (Dimensions) (in)	Beane Seamless Tube (Ø8 x 45 1/2)
Cleaning	Self Cleaning or Automatic Shaker (Optional)
Dust disposal options	Disposable Bags, Drums, Tilt Trucks, or 360 Gal. Dump Bin
Dimensions* (W x D x H) (in)	63 x 49 x 109
Module Weight (lbs)	795

Model 100

Filtration surface (sqft)	224
Filter type (Dimensions) (in)	Beane Seamless Tube (Ø8 x 45 1/2)
Cleaning	Self Cleaning or Automatic Shaker (Optional)
Dust disposal options	Disposable Bags, Drums, Tilt Trucks, or 360 Gal. Dump Bin
Dimensions* (W x D x H) (in)	94 x 49 x 109
Module Weight (lbs)	1290

Model 150

Filtration surface (sqft)	340
Filter type (Dimensions) (in)	Beane Seamless Tube (Ø8 x 45 1/2)
Cleaning	Self Cleaning or Automatic Shaker (Optional)
Dust disposal options	Disposable Bags, Drums, Tilt Trucks, or 360 Gal. Dump Bin
Dimensions* (W x D x H) (in)	119 x 49 x 109
Module Weight (lbs)	1462

Model 200

Filtration surface (sqft)	448
Filter type (Dimensions) (in)	Beane Seamless Tube (Ø8 x 45 1/2)
Cleaning	Self Cleaning or Automatic Shaker (Optional)
Dust disposal options	Disposable Bags, Drums, Tilt Trucks, or 360 Gal. Dump Bin
Dimensions* (W x D x H) (in)	142 x 49 x 109
Module Weight (lbs)	1530

Model Standard Blower (3600 RPM)

Blower Motor (HP)	5
Capacity (CFM)	2500
Suction (in WC)	7.5
Inlet Diameter (in)	9
Power (V/Ø/Hz)	220/1/60, 208-230-460/3/60 or 575/3/60
Blower Weight (lbs)	200
Sound pressure level (dBA)	82

Model Standard Blower (3600 RPM)

Blower Motor (HP)	7 1/2
Capacity (CFM)	3500
Suction (in WC)	7
Inlet Diameter (in)	10
Power (V/Ø/Hz)	220/1/60, 208-230-460/3/60 or 575/3/60
Blower Weight (lbs)	240
Sound pressure level (dBA)	84

Model Hummer Blower (1800 RPM)

Blower Motor (HP)	10
Capacity (CFM)	4000
Suction (in WC)	8
Inlet Diameter (in)	12
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Blower Weight (lbs)	350
Sound pressure level (dBA)	80

Model Hummer Blower (1800 RPM)

Blower Motor (HP)	15
Capacity (CFM)	5000
Suction (in WC)	10
Inlet Diameter (in)	14
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Blower Weight (lbs)	450
Sound pressure level (dBA)	81

Model Hummer Blower (1800 RPM)

Blower Motor (HP)	20
Capacity (CFM)	5000
Suction (in WC)	9.5
Inlet Diameter (in)	16
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Blower Weight (lbs)	560
Sound pressure level (dBA)	83

No scripts loaded

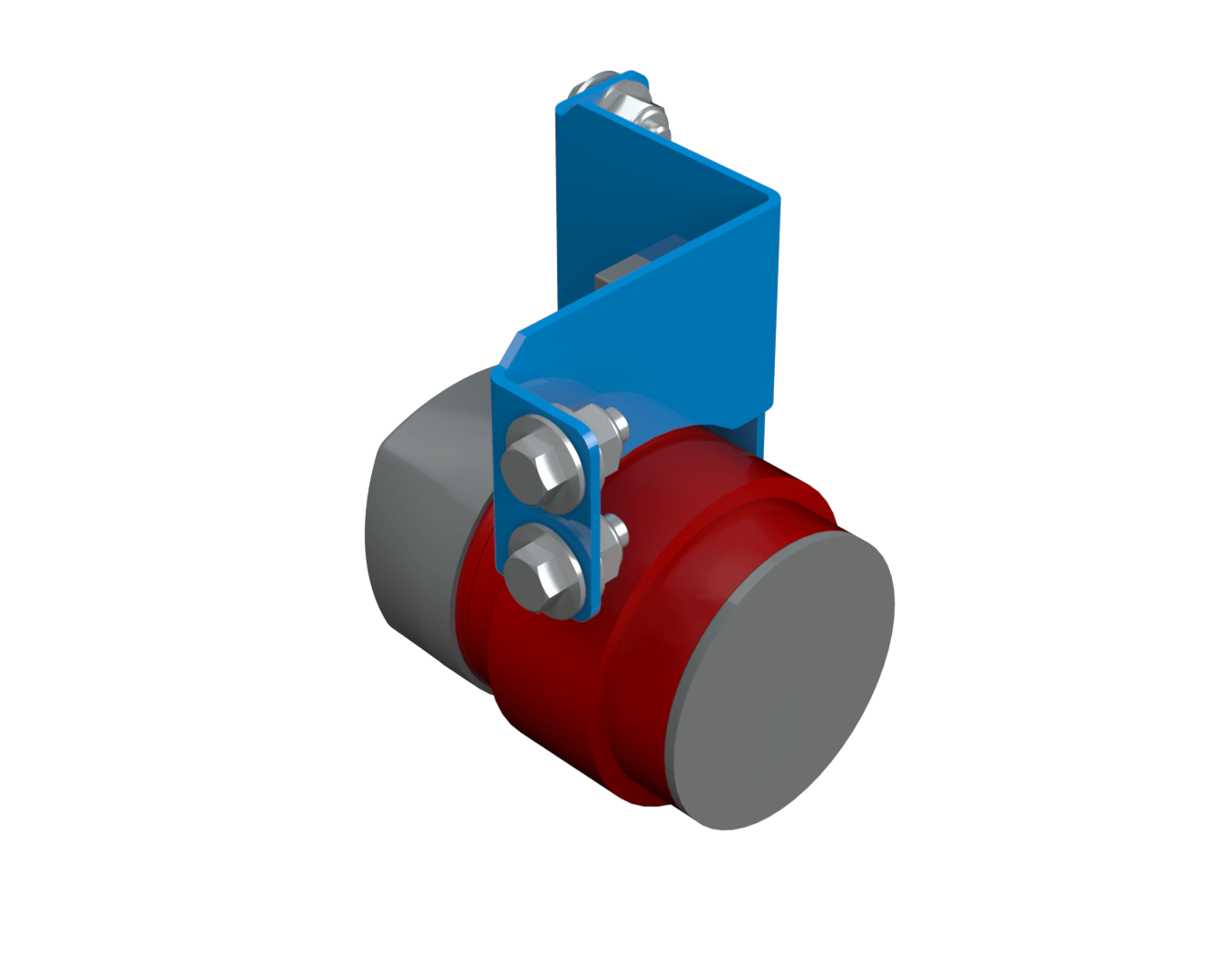

Automatic Shaker

This automatic shaker system activates upon blower shutdown, ensuring NFPA compliance. Designed for fine dust, it enhances efficiency by cleaning filters to reduce pressure loss, ensuring optimal performance and prolonging filter life.

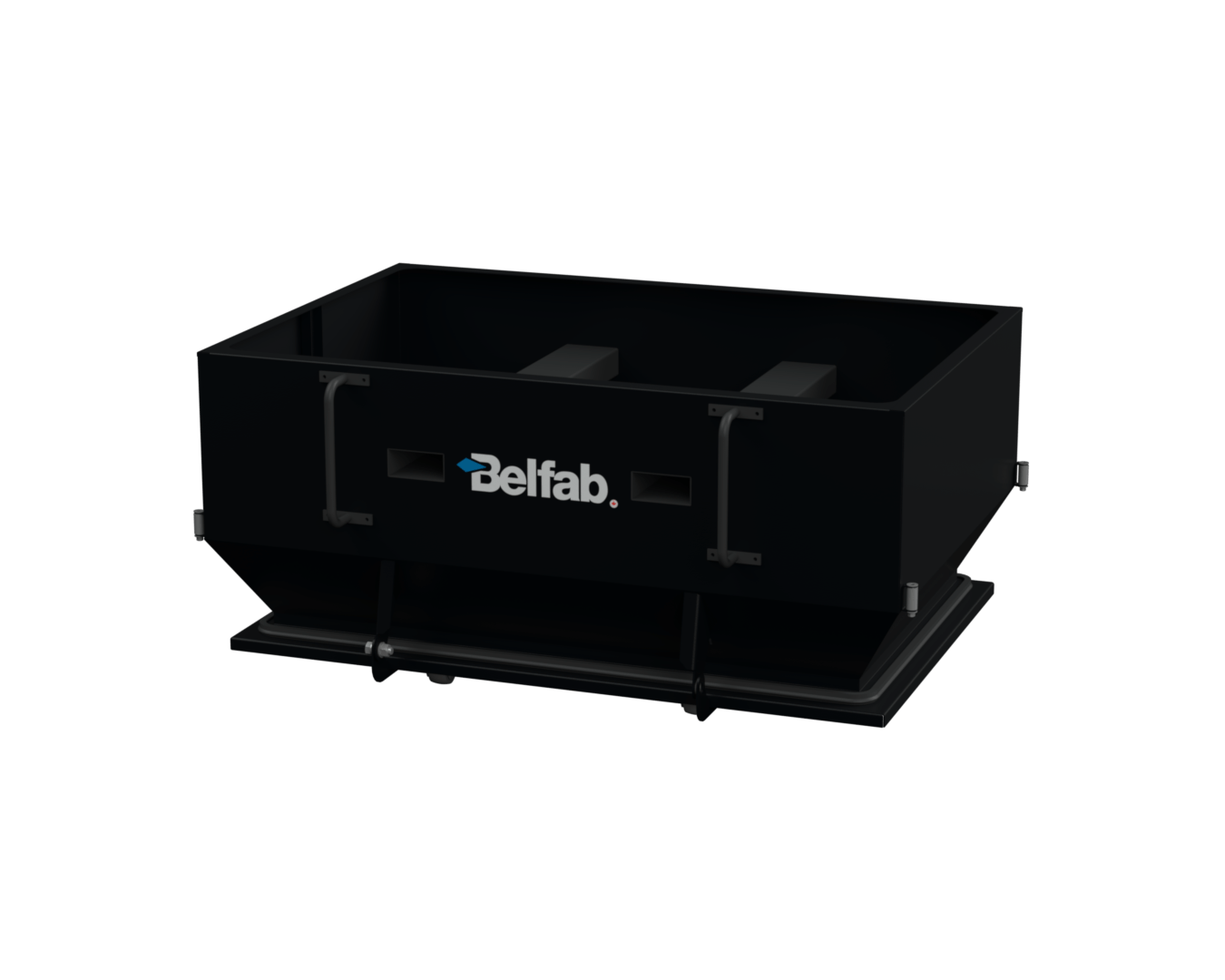

360 gal Dump Bin

The 360-gallon dump bin, constructed from heavy-gauge steel, minimizes emptying downtime. Its compact design features a single-action lid and forklift compatibility, ensuring quick and efficient waste disposal with effortless operation in any industrial setting.
Tilt Truck

The Belfab Tilt Trucks, with a 105-gallon capacity and heavy-duty build, enhance industrial dust handling. Features easy mobility and a strategic tilting mechanism for effortless unloading.

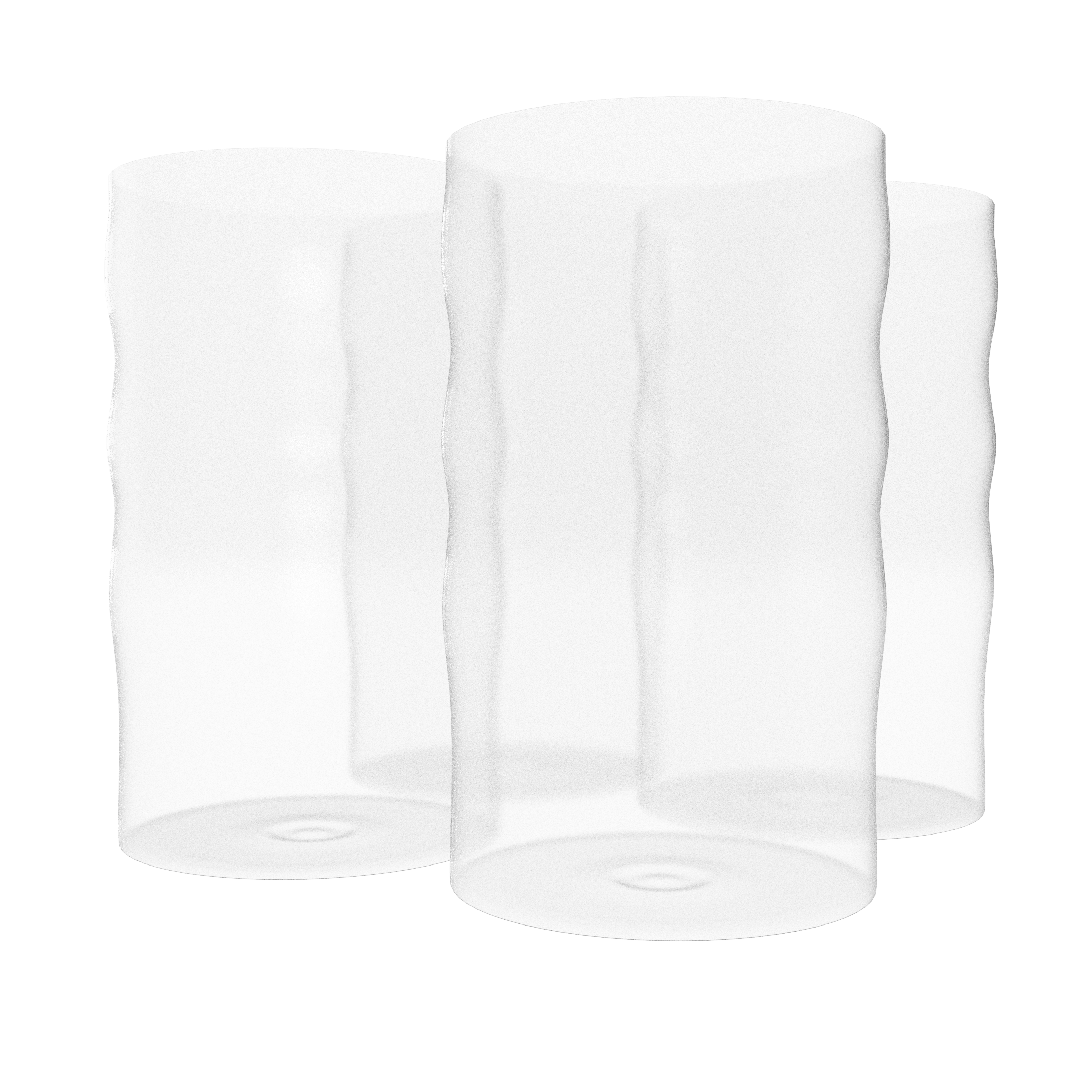

Disposable Bags

The Disposable Dust Bags are designed for efficient dust collection and easy disposal. Made from durable materials, they ensure safe containment and straightforward handling, perfect for any industrial setting.

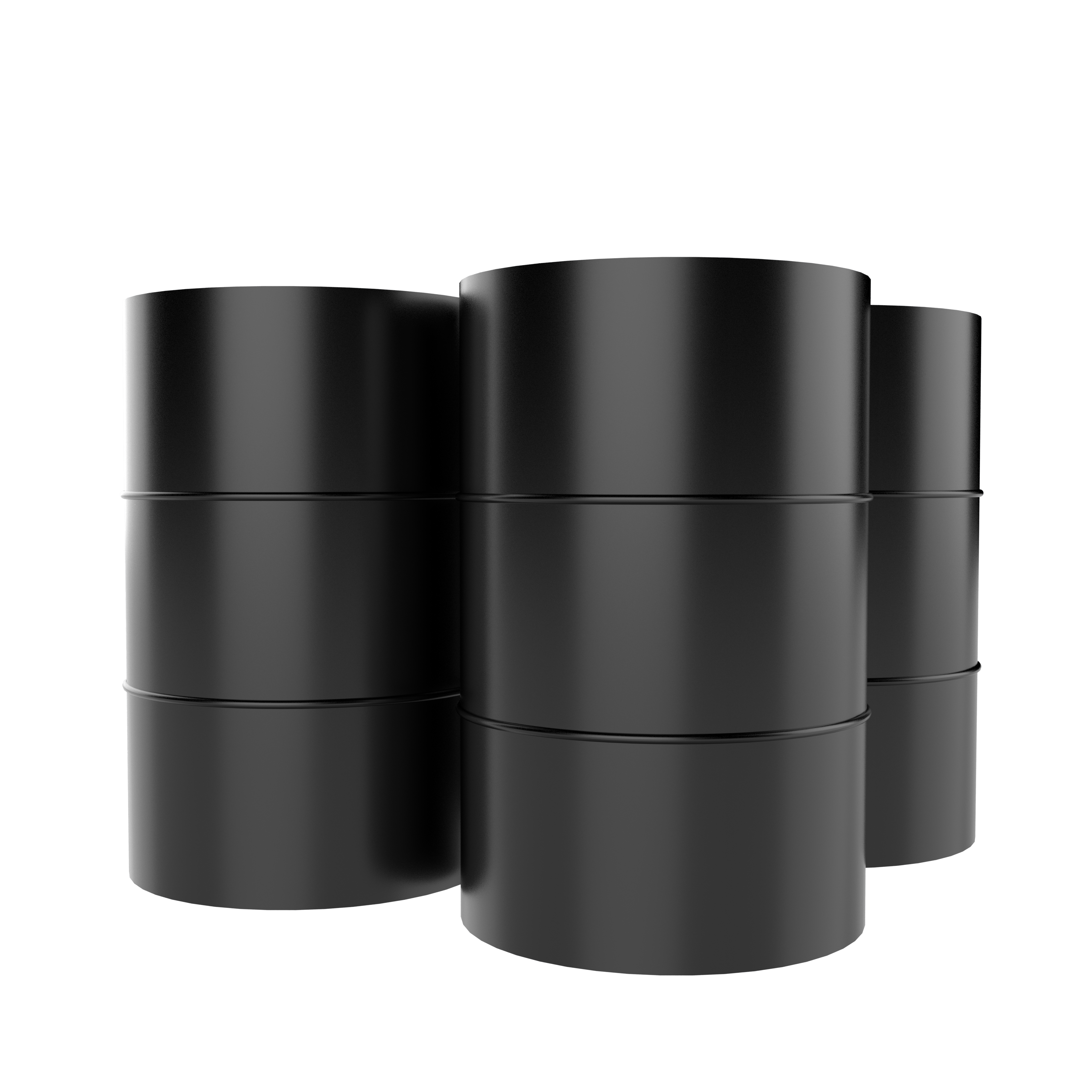

Steel Drum

The Steel Drums are engineered for secure and durable dust disposal. With robust construction, these drums are ideal for medium-capacity dust collection systems, ensuring a safe and efficient disposal solution in industrial environments.
Magnetic Starter

The Magnetic Starters provide reliable, safe activation for dust collection systems. Engineered for durability and seamless integration, they ensure optimal performance and protection against electrical overloads in industrial environments.
Filter Bag

The BEL Series Bean Bag Filters offer high-efficiency filtration. Durable and easy to maintain, they capture 99.99% of particles between 3.8-4.6 microns, enhancing air quality and system performance in various industrial settings.
