MPJC H

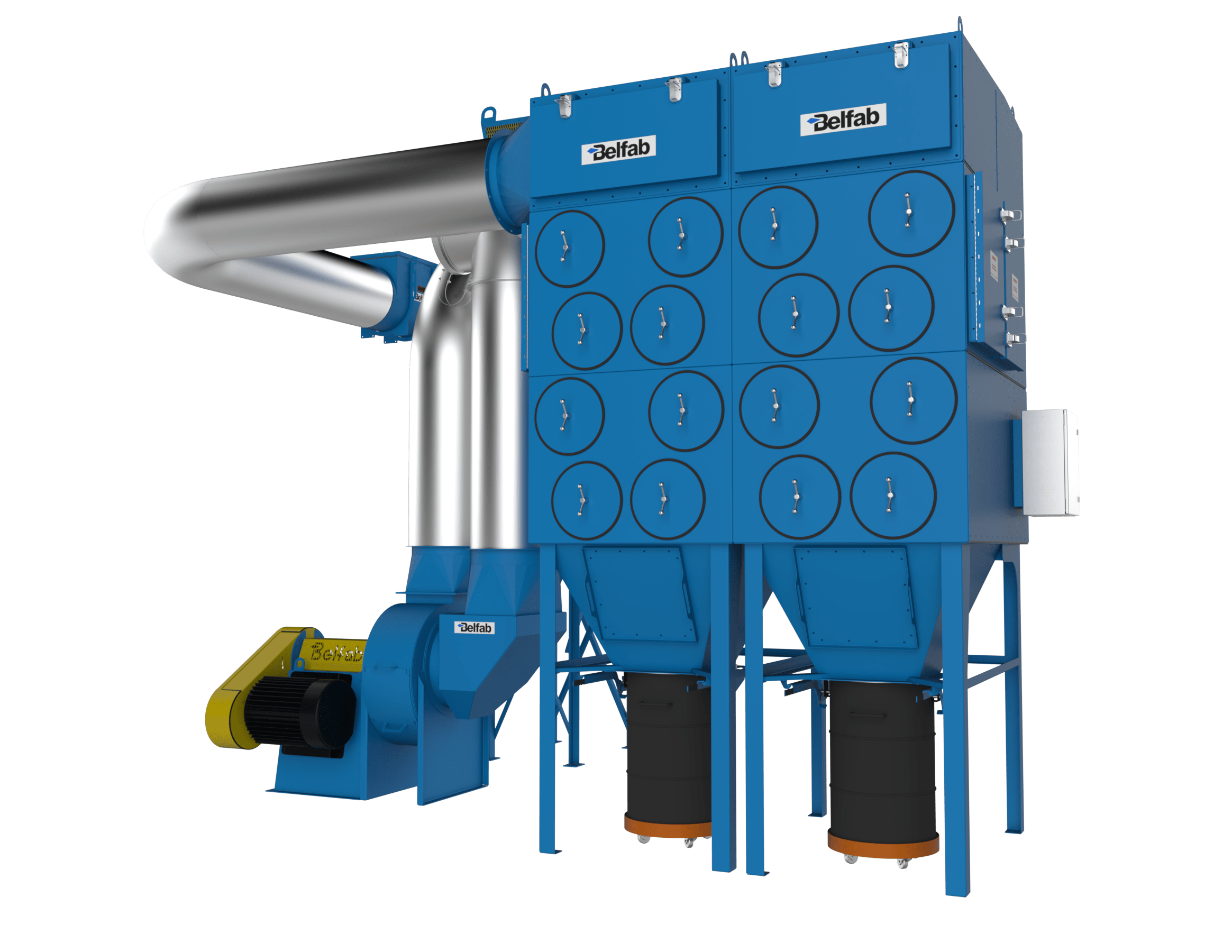

Discover the BELFAB MPJC H4 & H8 dust collectors from the MPJC series, the apogee of down-flow modular cartridge dust collectors with a highly efficient pulse jet cleaning system.

Built to Last: Heavy-Duty Construction
These units are crafted from robust 11-gauge fully welded structurally reinforced steel, ensuring durability and longevity. This feature empowers the H4 & H8 models to excel in a wide range of pressure and application requirements, making them versatile solutions for various industrial needs.

Tailored Filtration: Multiple Filter Media Options
The H4 & H8 models use standard-sized cartridges, available in multiple filter media types. This versatility allows you to select the filter media that perfectly aligns with your specific manufacturing process, whether it involves grinding, welding, buffing, sanding, smelting, and more.

Optimal Air-to-Cloth Ratio: Uncompromising Performance
The H4 collector offers an optimal air-to-cloth ratio, accommodating airflow ranging from 1000 to 6400 CFM per filtration module. Meanwhile, the H8 collector is designed for even greater capacities, with an optimal air-to-cloth ratio suitable for 4000 to 14500 CFM per filtration module.

Upgradeable Blower: Expand Your Capacity
A standout feature of the BELFAB MPJC H4 & H8 collectors is their modular filter concept and upgradeable blower. This design allows for straightforward and cost-effective retrofitting, enabling you to increase CFM capacity and filtration surface area to meet evolving needs.

Key Features: Filter Module & Pulse System

Built to Last: Robust 11-gauge steel fully welded and heavy-duty structure.
Efficient Filtration: Horizontal (8 or 16) cartridge filter configuration.
Advanced Cleaning: Pulse cleaning technology with a pulse sequential controller.
Versatile Filtration: Standard size cartridges available in multiple filter media options.
Optimal Airflow: Filter guard deflector for enhanced performance.
Modular Design: Modular configuration for scalability and adaptability.
Ease of Maintenance: Quick and easy maintenance to minimize downtime.

Upgrade to BELFAB’s MPJC H4 & H8 dust collectors and experience unmatched performance and longevity, tailored to your unique industrial requirements. Boost efficiency and reduce maintenance with innovative pulse cleaning technology and customizable features. Elevate your dust collection system to the next level with BELFAB.

Model MPJC-H4 (PER MODULE)

Filtration Surface (sqft) (std cartridge)	1840
Cartridge Type	85/15 cellulose - Polyester Cartridges
Cleaning	Pulse Jet
Dimensions (W x D x H) (in)	58 x 88 x 113
Module Weight (lbs)	1800

Model MPJC-H6 (PER MODULE)

Filtration Surface (sqft) (std cartridge)	2760
Cartridge Type	85/15 cellulose - Polyester Cartridges
Cleaning	Pulse Jet
Dimensions (W x D x H) (in)	58 x 88 x 131
Module Weight (lbs)	2050

Model MPJC-H8 (PER MODULE)

Filtration Surface (sqft) (std cartridge)	3680
Cartridge Type	85/15 cellulose - Polyester Cartridges
Cleaning	Pulse Jet
Dimensions (W x D x H) (in)	58 x 88 x 148
Module Weight (lbs)	2300

Model RBI BLOWER

Blower Motor (HP)	20
Capacity (CFM)	5000
Suction (in WC)	11,5
Inlet diameter (in)	16
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Module weight (lbs)	360

Model RBI BLOWER

Blower Motor (HP)	25
Capacity (CFM)	7500
Suction (in WC)	12
Inlet diameter (in)	18
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Module weight (lbs)	360

Model RBI BLOWER

Blower Motor (HP)	40
Capacity (CFM)	10000
Suction (in WC)	16
Inlet diameter (in)	20
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Module weight (lbs)	200

Model RBI BLOWER

Blower Motor (HP)	50
Capacity (CFM)	12000
Suction (in WC)	16
Inlet diameter (in)	22
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Module weight (lbs)	240

Model RBI BLOWER

Blower Motor (HP)	60
Capacity (CFM)	16000
Suction (in WC)	16
Inlet diameter (in)	26
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Module weight (lbs)	250

Model RBI BLOWER

Blower Motor (HP)	75
Capacity (CFM)	19500
Suction (in WC)	16
Inlet diameter (in)	28
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Module weight (lbs)	340

Model RBI BLOWER

Blower Motor (HP)	100
Capacity (CFM)	24000
Suction (in WC)	16
Inlet diameter (in)	32
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Module weight (lbs)	360

Model RBI BLOWER

Blower Motor (HP)	125
Capacity (CFM)	34000
Suction (in WC)	16
Inlet diameter (in)	38
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Module weight (lbs)	350

Model RBI BLOWER

Blower Motor (HP)	150
Capacity (CFM)	43000
Suction (in WC)	16
Inlet diameter (in)	42
Power (V/Ø/Hz)	208-230-460/3/60 or 575/3/60
Module weight (lbs)	450

Note : Additional configurations available. Contact Belfab with your specifications for final selection.

Steel Drum

The Steel Drums are engineered for secure and durable dust disposal. With robust construction, these drums are ideal for medium-capacity dust collection systems, ensuring a safe and efficient disposal solution in industrial environments.
Pneumatic Dust Transfer System

The Pneumatic Dust Transfer System offers an efficient solution for conveying dust and debris through air-driven technology. This system ensures clean, safe, and automated dust removal, enhancing operational efficiency in industrial environments.
Rotary Airlock Valve

The Rotary Airlock Valve is engineered for seamless integration with dust collection systems, facilitating continuous dust discharge without disrupting airflow. Ideal for maintaining system efficiency and air quality in industrial settings.
Backdraft Damper

The Backdraft Damper is ATEX certified and equipped with a dust level sensor and security panel, ensuring superior safety and operational control. This advanced feature set prevents reverse airflow, protecting the operators in the building.
Spark Detector

The Spark Detector enhances safety in dust collection systems by immediately detecting and responding to sparks. This critical safety device helps prevent potential fires, ensuring a safer industrial environment.
Heat Sensor and Sprinkler

The Heat Sensor and Sprinkler system offers enhanced fire protection for the dust collector. The heat sensor detects elevated temperatures, triggering the sprinkler system to suppress potential fires quickly and efficiently.
Fire Damper

The Fire Damper is designed to automatically close upon detecting heat, preventing the spread of fire through ductwork. This safety mechanism is essential for maintaining fire resistance in ventilation systems across various industrial settings.
Derivation Tee

The Derivation Tee serves as an explosion vent for ducting returning to the building, enhancing safety by relieving pressure and redirecting explosive forces away from critical areas. This component ensures NFPA compliance.
Abort Damper

The Abort Damper is engineered to enhance safety in dust collection systems by quickly diverting exhaust air to a safe location in the event of a detected fire or explosion risk. This crucial component helps mitigate hazards, protecting both equipment and personnel.
Filter Cartridge
Air Return Silencer

The Air Return Silencer effectively reduces noise from dust collection systems, ensuring a quieter work environment. Its design enhances airflow while minimizing sound, making it ideal for industrial settings where noise reduction is crucial.
