SBM

The BELFAB SBM dust collector line is engineered to efficiently handle medium to large volumes of fine to mixed dust, with capacities ranging from 5,000 to 30,000 CFM. This innovative design seamlessly integrates BELFAB’s cutting-edge modular filter technology, offering a cost-effective means of increasing filtration surface area as needed by introducing additional filter modules. Each SBM module comes equipped with deflagration vents, adhering to NFPA 68 regulations, ensuring a safe and compliant operation.

Customizable Blowers: The Power of Choice

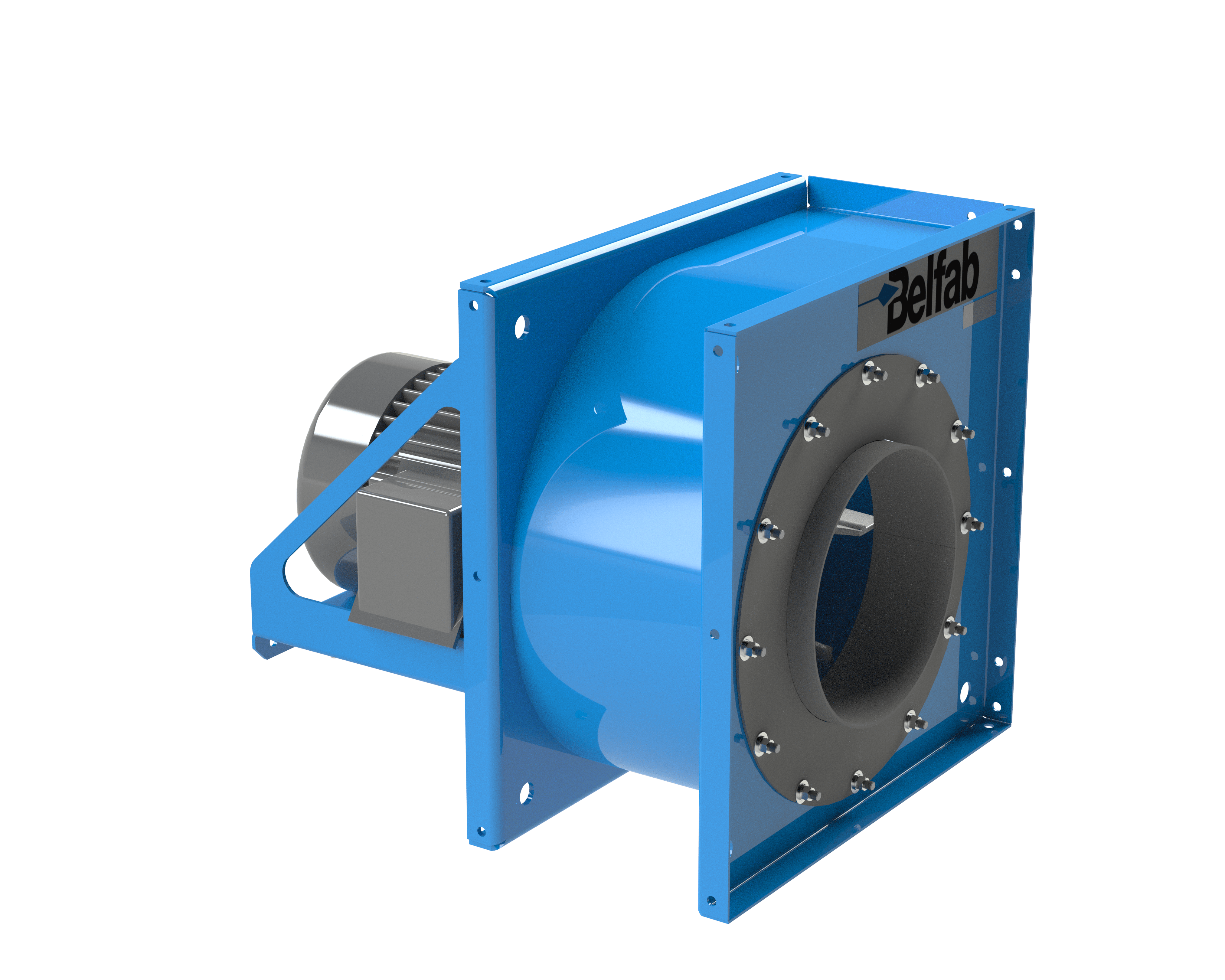

Our HUMMER 1800 RPM direct drive fan stands as our quietest blower design, ideal when a low sound level is a requirement (84 dB). The BELFAB HUMMER series is available for a range of applications, from 10HP to twin 30HP, providing a substantial airflow of up to 18,000 CFM.

For scenarios that demand even higher static pressure performance (up to 30,000 CFM), we present the optional RSC/RSO belt-driven blower series. These fans are designed for handling moderate loads of dust, powder, and particles, ensuring the efficiency and reliability your facility requires. Additionally, we offer our RBI backward-inclined wheels in a pull configuration when you select our rotary airlock dust disposal option.

Key Features

Impressive Capacity: The SBM series offers capacities up to 30,000 CFM, ensuring efficient dust collection.
Energy Efficiency: Premium efficiency TEFC motor, cCSAus approved, for optimal performance.
High-Efficiency Filtration: Equipped with Polytwill filter bags boasting an efficiency level of 99.9982% at 2 microns, ensuring the capture of even the finest particles.
Configuration Flexibility: Can be configured either in a push or pull (optional) configuration, adapting to your specific setup.
Easy Maintenance: A maintenance access door per filter module simplifies upkeep and servicing.
Modularity for Scalability: The modular design allows for seamless expansion of the filtration surface area to meet evolving needs.
Versatile Blower Options: Choose between the HUMMER series for quiet operation or the RSC/RSO belt-driven blower series for higher static pressure performance.
Safety Compliance: Designed to adhere to NFPA standards, ensuring a secure operation.

Elevate your dust collection to a new level of efficiency, safety, and adaptability with the BELFAB SBM modular dust collector. It offers scalable filtration solutions and customizable blower options, ensuring a clean, safe, and productive working environment while meeting the strictest industry standards.

Model SBM (PER MODULE)

Filtration Surface (sqft)	698
Filter Type	100% polyester needle felt bag
Cleaning	Mechanical shaker
Dimensions (W* x D* x H) (in)	48 x 96 x 201
Module Weight (lbs)	2500

Model RSC BLOWER

Blower Motor (HP)	40
Capacity (CFM)	10000
Suction (in WC)	16
Inlet Diameter (in)	20
Power (V/Ø/Hz)	230-460/3/60 or 575/3/60
Blower Weight (lbs)	200

Model RSC BLOWER

Blower Motor (HP)	50
Capacity (CFM)	12000
Suction (in WC)	16
Inlet Diameter (in)	22
Power (V/Ø/Hz)	230-460/3/60 or 575/3/60
Blower Weight (lbs)	240

Model RSC BLOWER

Blower Motor (HP)	60
Capacity (CFM)	16000
Suction (in WC)	16
Inlet Diameter (in)	26
Power (V/Ø/Hz)	230-460/3/60 or 575/3/60
Blower Weight (lbs)	250

Model RSC BLOWER

Blower Motor (HP)	75
Capacity (CFM)	19500
Suction (in WC)	16
Inlet Diameter (in)	28
Power (V/Ø/Hz)	230-460/3/60 or 575/3/60
Blower Weight (lbs)	340

Model RSC BLOWER

Blower Motor (HP)	100
Capacity (CFM)	24000
Suction (in WC)	16
Inlet Diameter (in)	32
Power (V/Ø/Hz)	230-460/3/60 or 575/3/60
Blower Weight (lbs)	360

Note : Additional configurations available. Contact Belfab with your specifications for final selection.

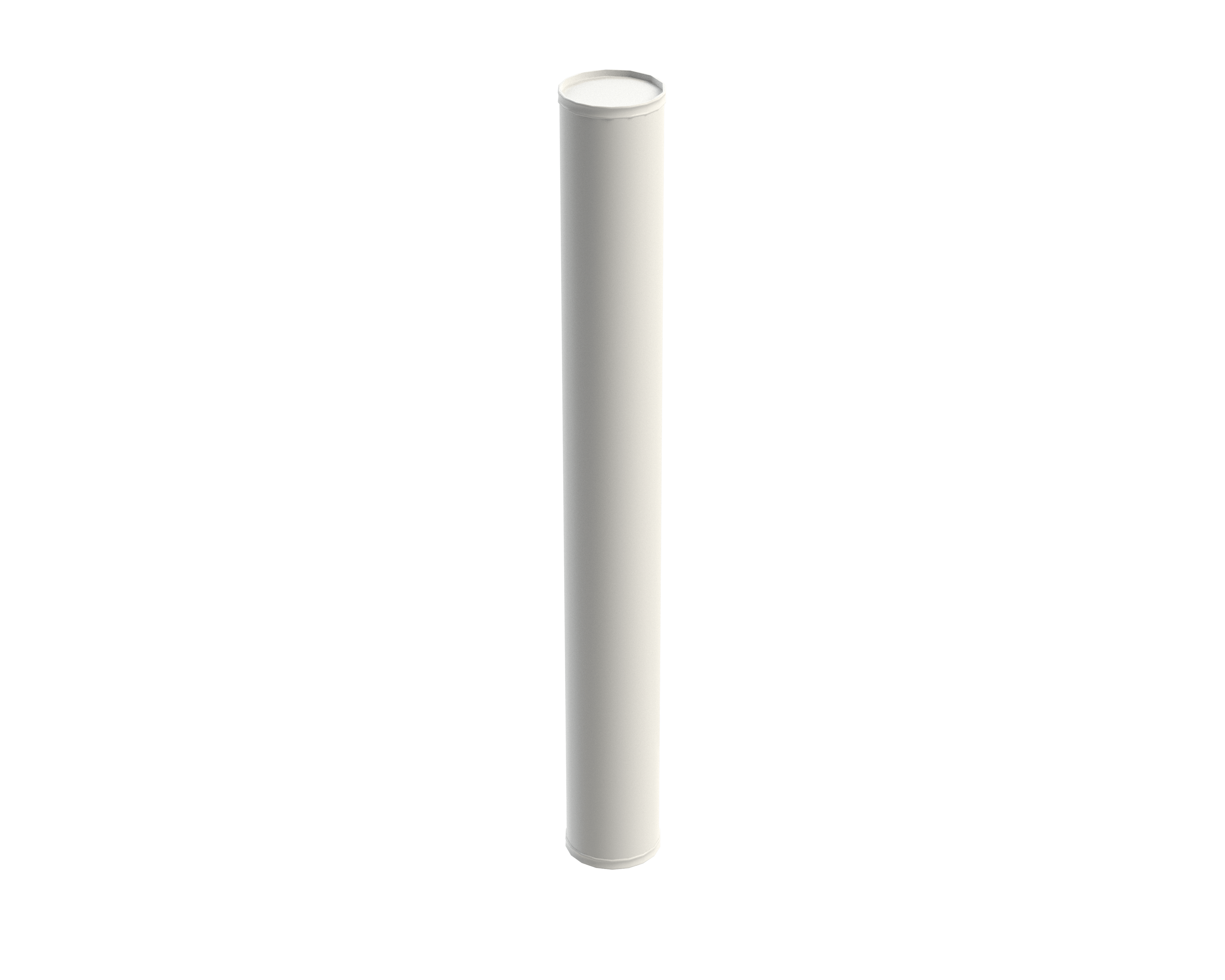

Filter Bag
Pneumatic Dust Transfer System

The Pneumatic Dust Transfer System offers an efficient solution for conveying dust and debris through air-driven technology. This system ensures clean, safe, and automated dust removal, enhancing operational efficiency in industrial environments.

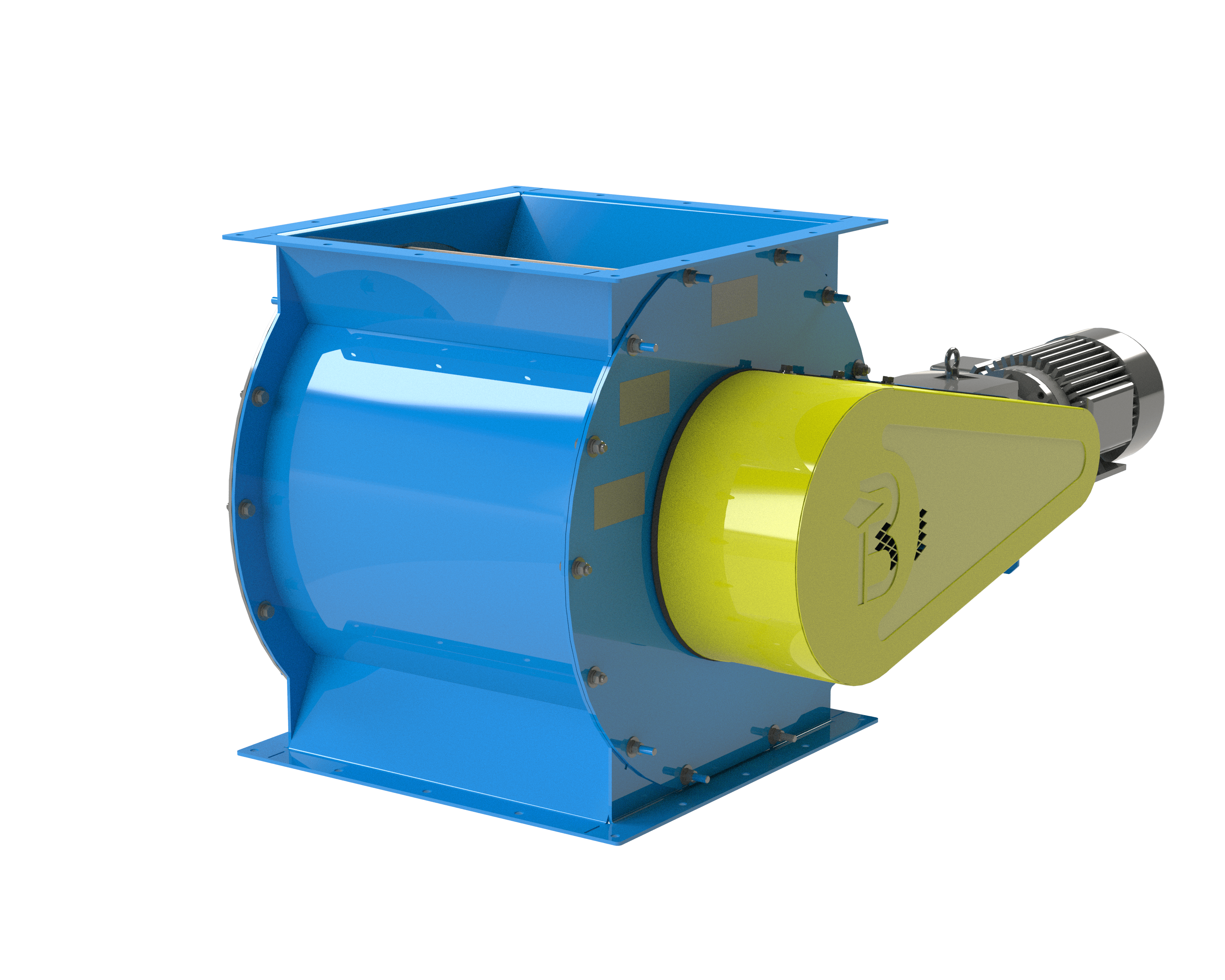

Rotary Airlock Valve

The Rotary Airlock Valve is engineered for seamless integration with dust collection systems, facilitating continuous dust discharge without disrupting airflow. Ideal for maintaining system efficiency and air quality in industrial settings.

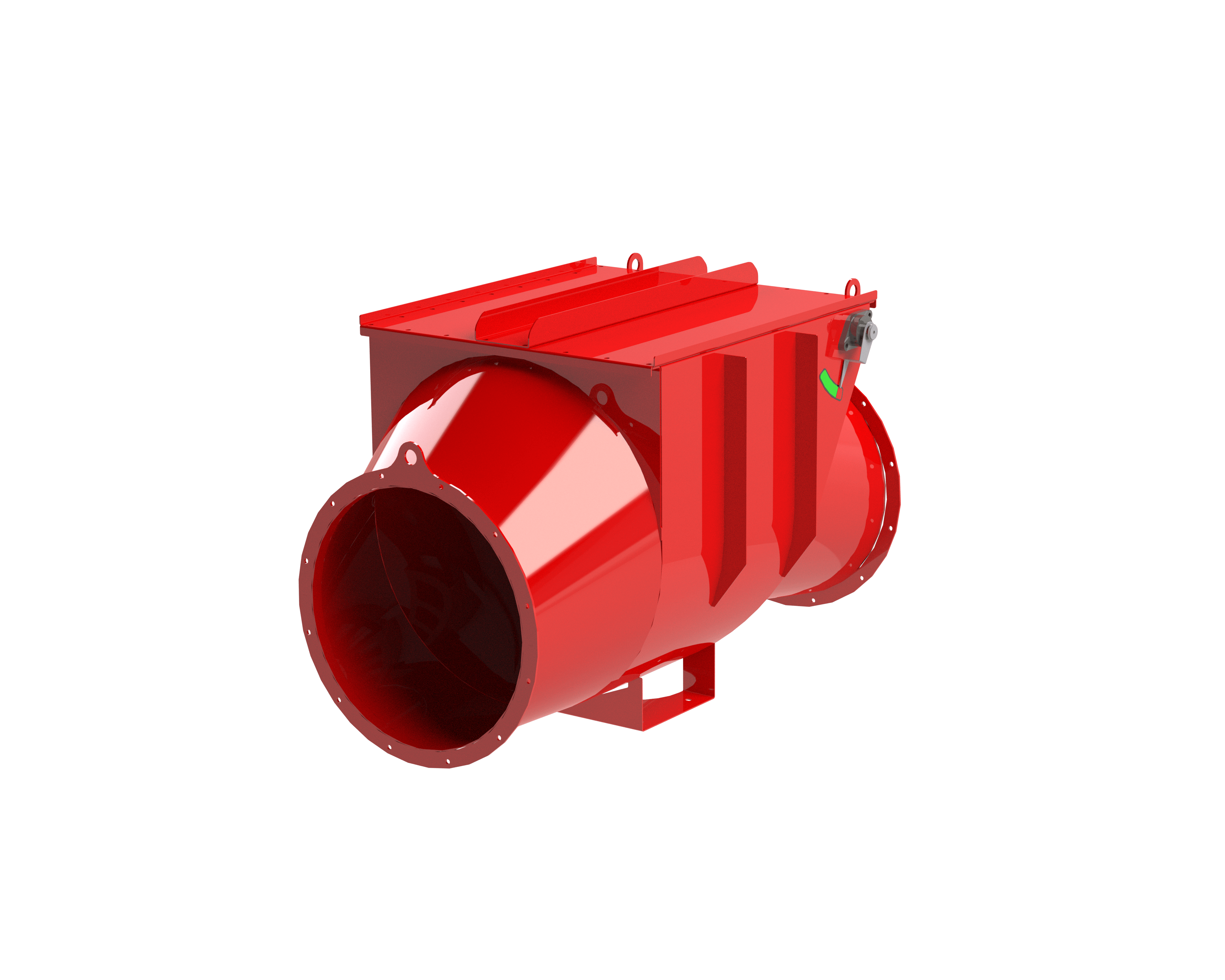

Backdraft Damper

The Backdraft Damper is ATEX certified and equipped with a dust level sensor and security panel, ensuring superior safety and operational control. This advanced feature set prevents reverse airflow, protecting the operators in the building.

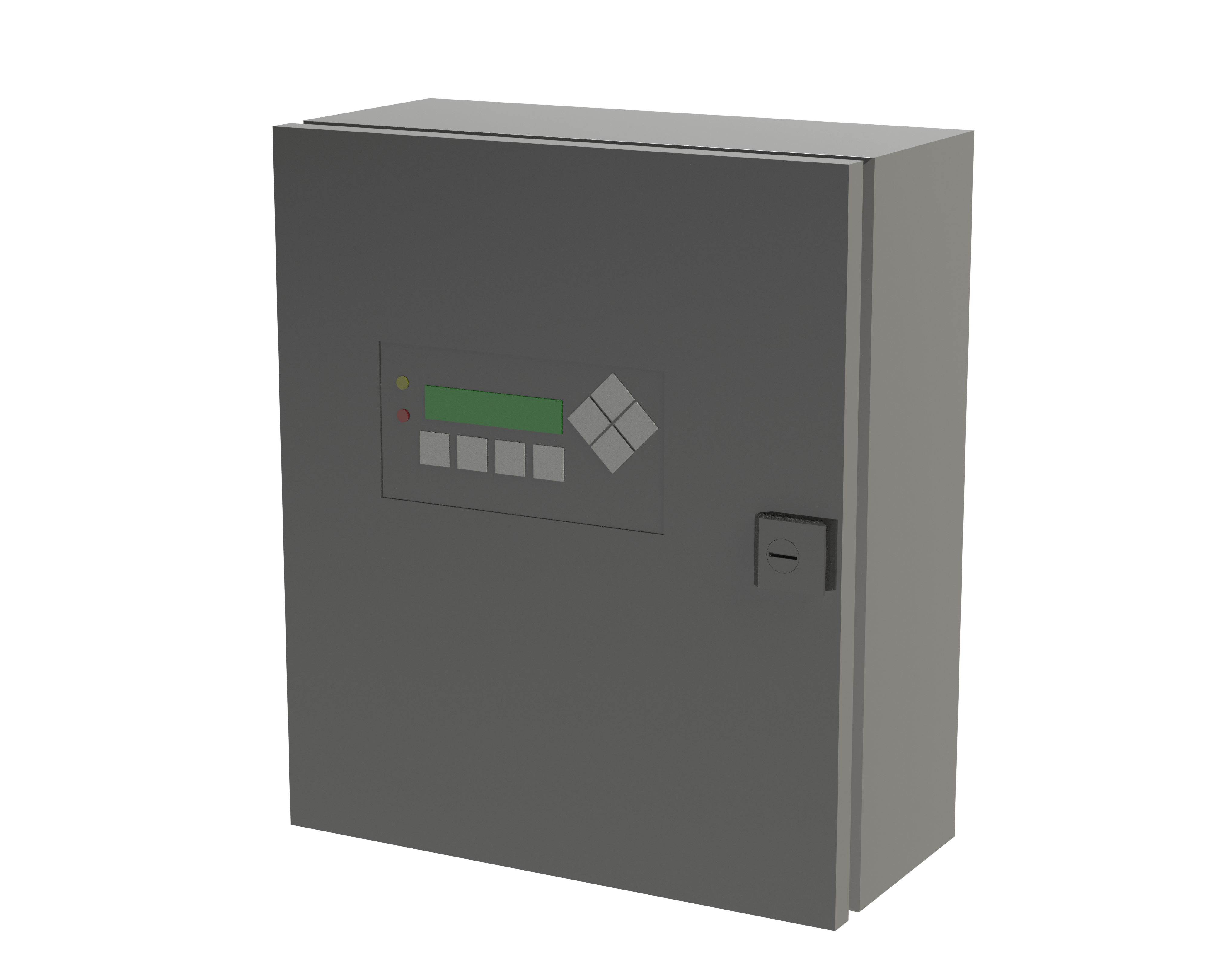

Spark Detector

The Spark Detector enhances safety in dust collection systems by immediately detecting and responding to sparks. This critical safety device helps prevent potential fires, ensuring a safer industrial environment.

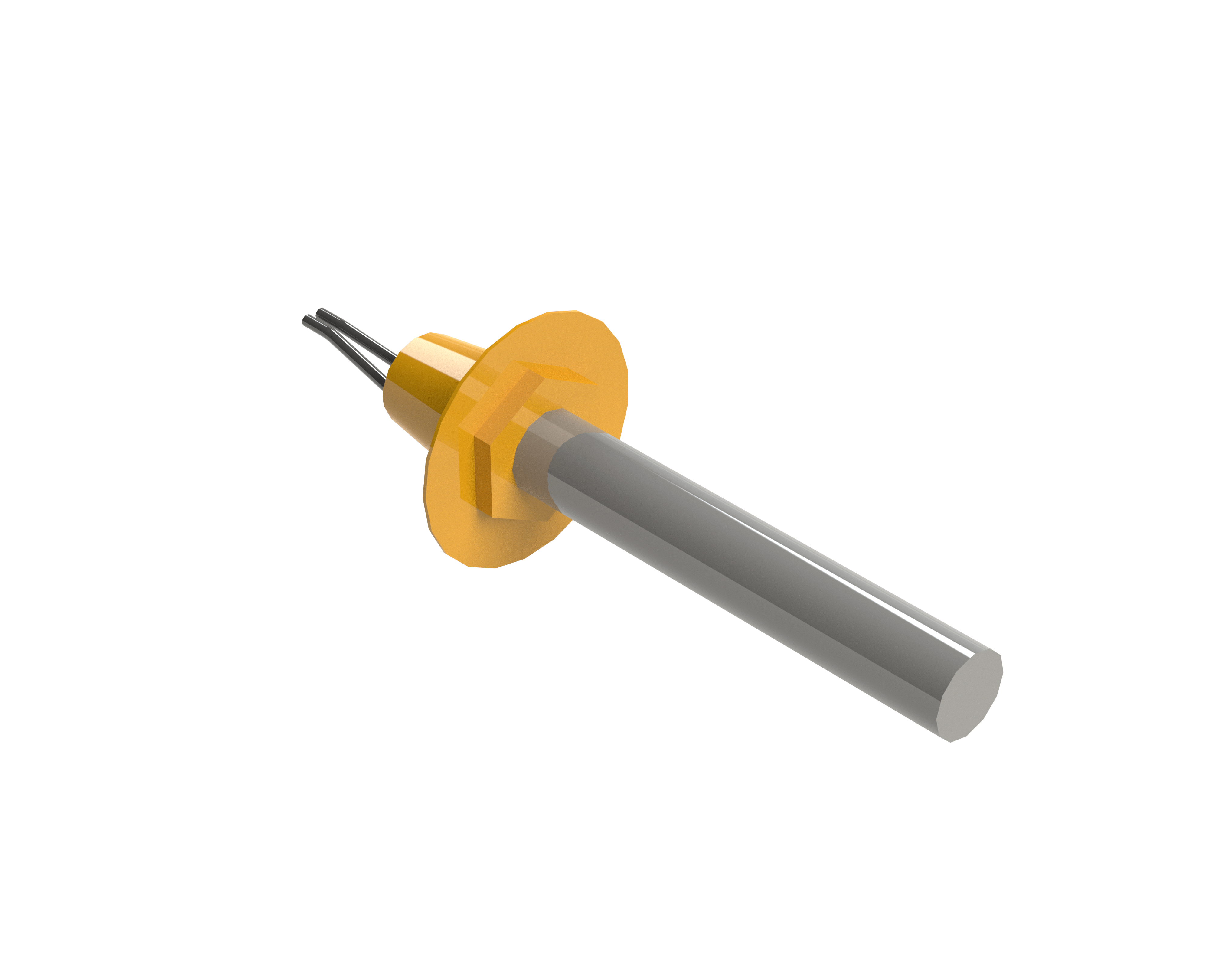

Heat Sensor and Sprinkler

The Heat Sensor and Sprinkler system offers enhanced fire protection for the dust collector. The heat sensor detects elevated temperatures, triggering the sprinkler system to suppress potential fires quickly and efficiently.

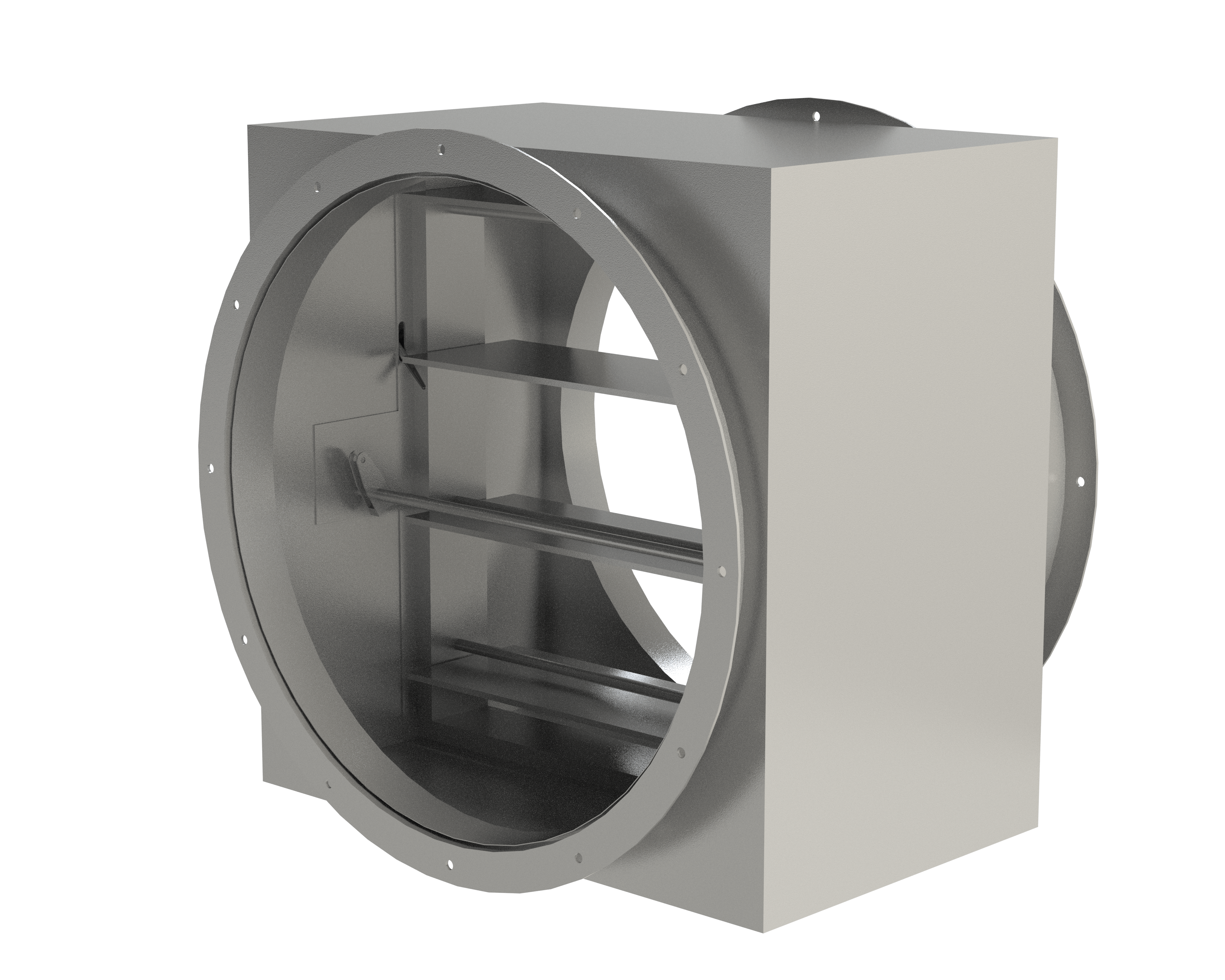

Fire Damper

The Fire Damper is designed to automatically close upon detecting heat, preventing the spread of fire through ductwork. This safety mechanism is essential for maintaining fire resistance in ventilation systems across various industrial settings.

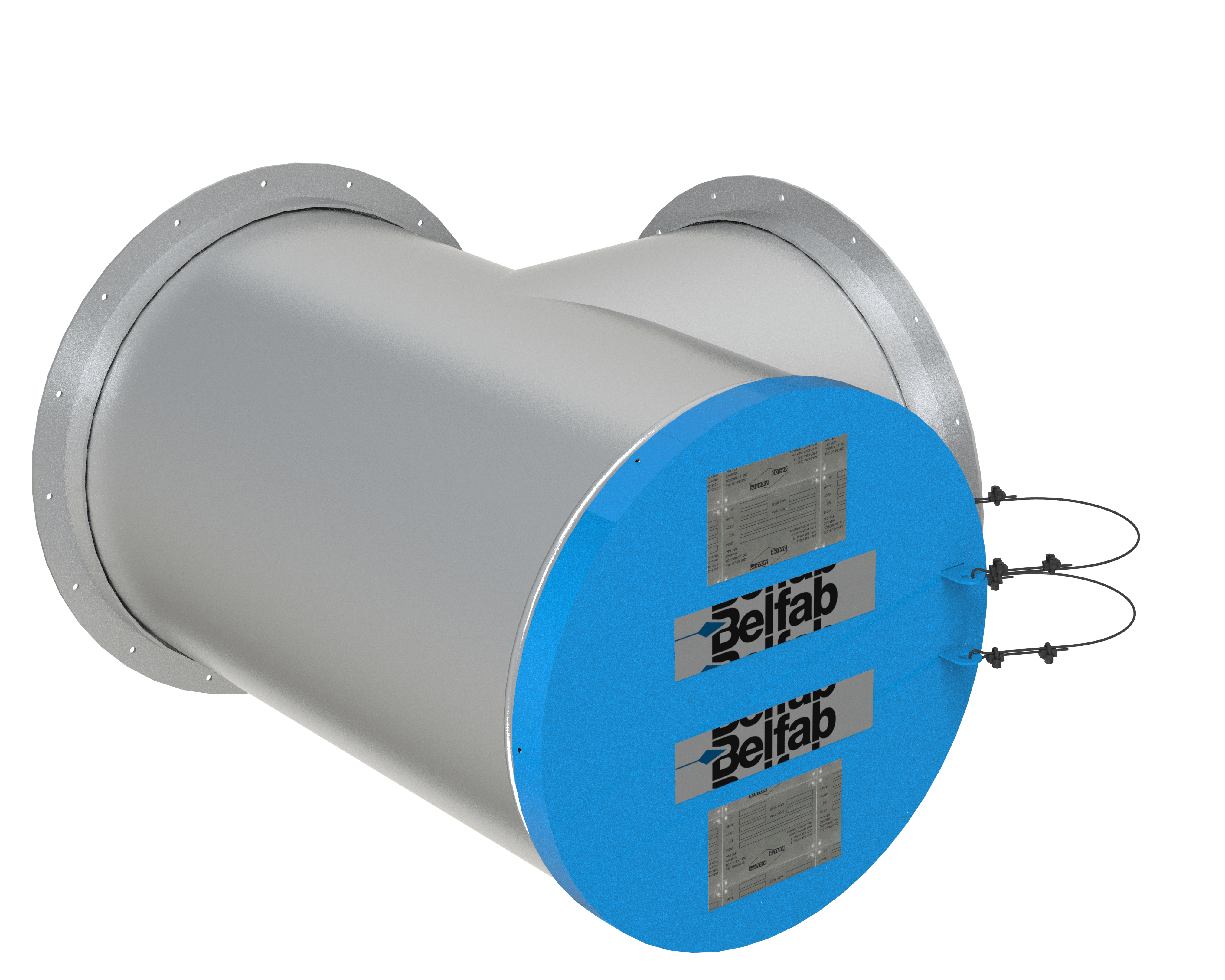

Derivation Tee

The Derivation Tee serves as an explosion vent for ducting returning to the building, enhancing safety by relieving pressure and redirecting explosive forces away from critical areas. This component ensures NFPA compliance.

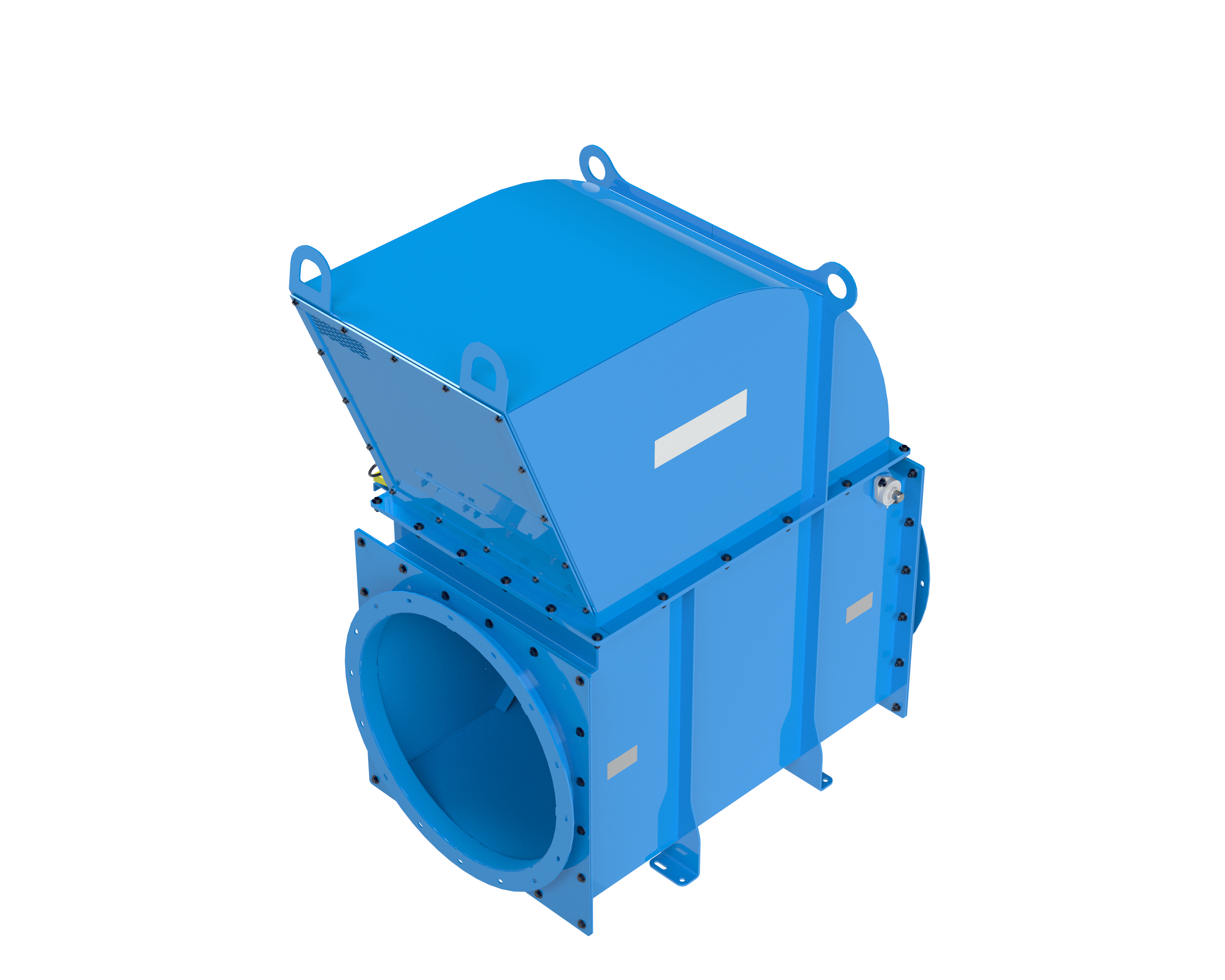

Abort Damper

The Abort Damper is engineered to enhance safety in dust collection systems by quickly diverting exhaust air to a safe location in the event of a detected fire or explosion risk. This crucial component helps mitigate hazards, protecting both equipment and personnel.
Air Return Silencer

The Air Return Silencer effectively reduces noise from dust collection systems, ensuring a quieter work environment. Its design enhances airflow while minimizing sound, making it ideal for industrial settings where noise reduction is crucial.
Filter Pressure Gauge

The Magnehelic Pressure Gauge provides accurate monitoring of filter conditions in dust collectors. It serves as a way to indicate when to clean or replace filters, ensuring efficient operation and maintaining air quality in industrial environments.
